Belting Technical Data Sheets

Photo Name Part Number Technical Data

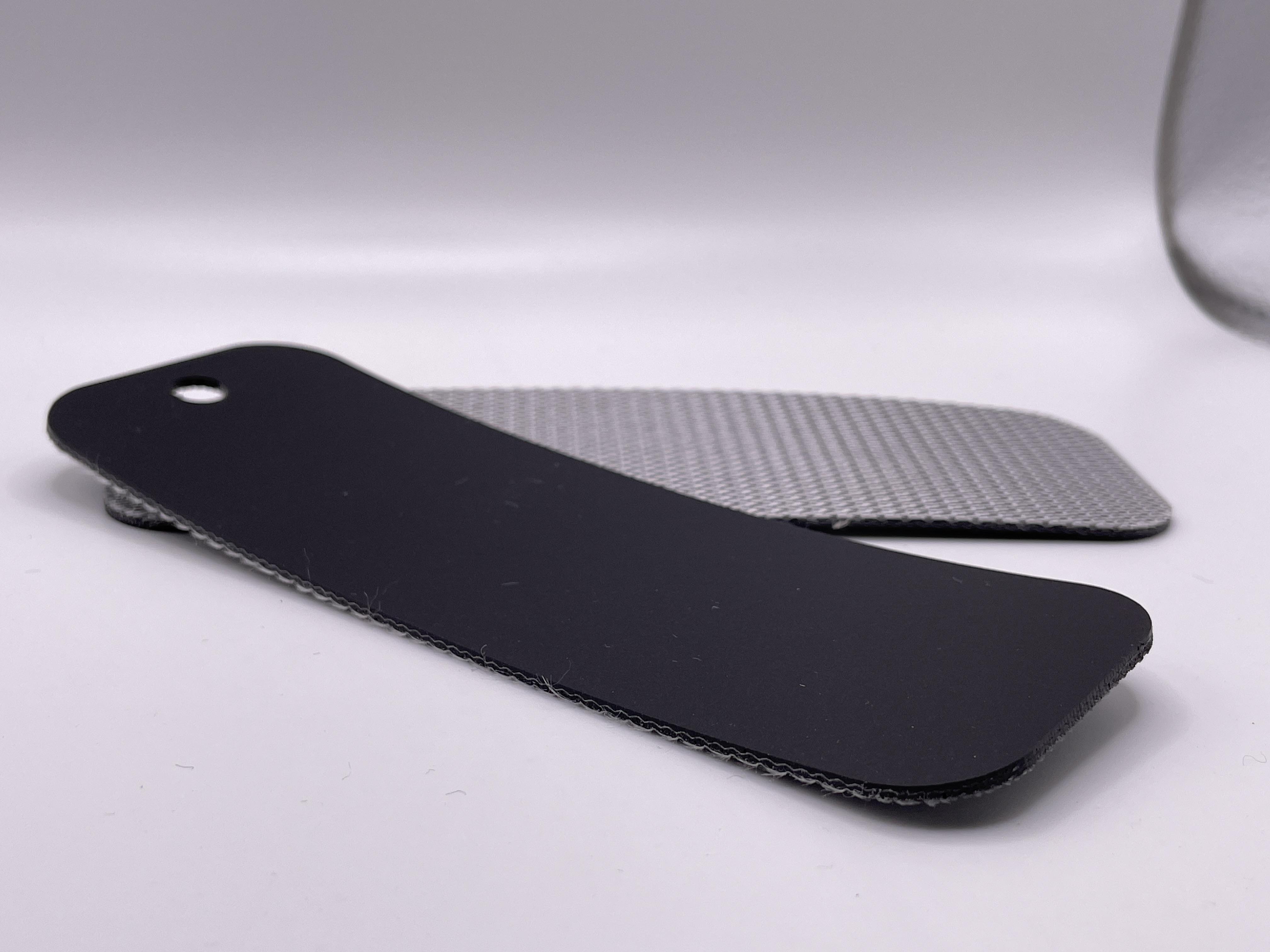

03 003 M Mf Bp 210 Qw Mono Flex BP 210 Q/W

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone Resistant. Belt lays flat with no edge curl. Proven performance on grocery checkout counters, newspaper handling, electronic components and tape cartridges. The whisper weave offers low noise and improved abrasion resistance at high speeds.

03-003 Download

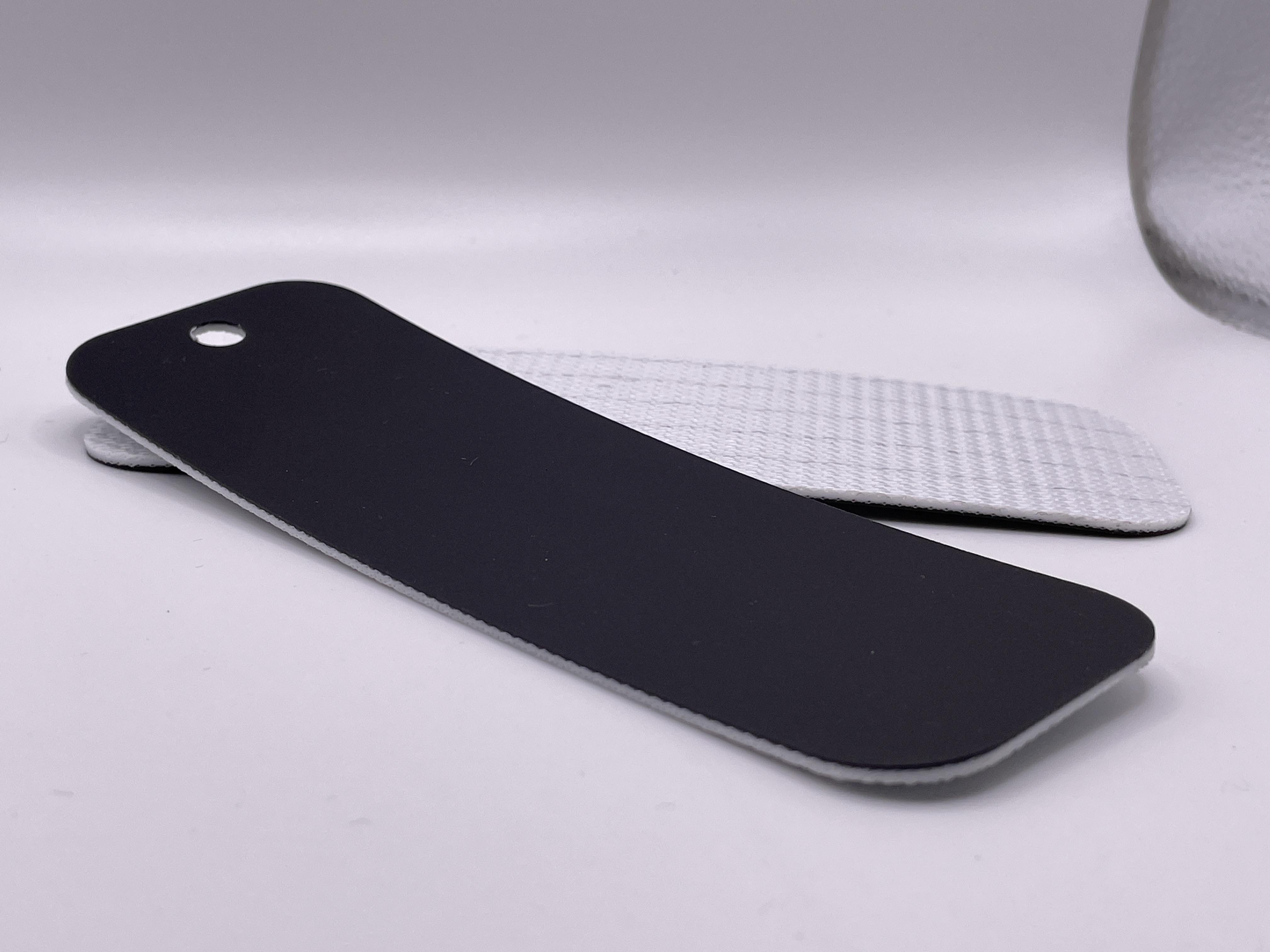

03 064 Mf Bp 210 Qw Fr Mono Flex BP 210 QW FR

Excellent choice for incline or decline conveyors up to 12 degrees, diverting, and extendos. Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid in high concentrations. Ozone resistant. Belt lays flat with no edge curl.

03-064 Download

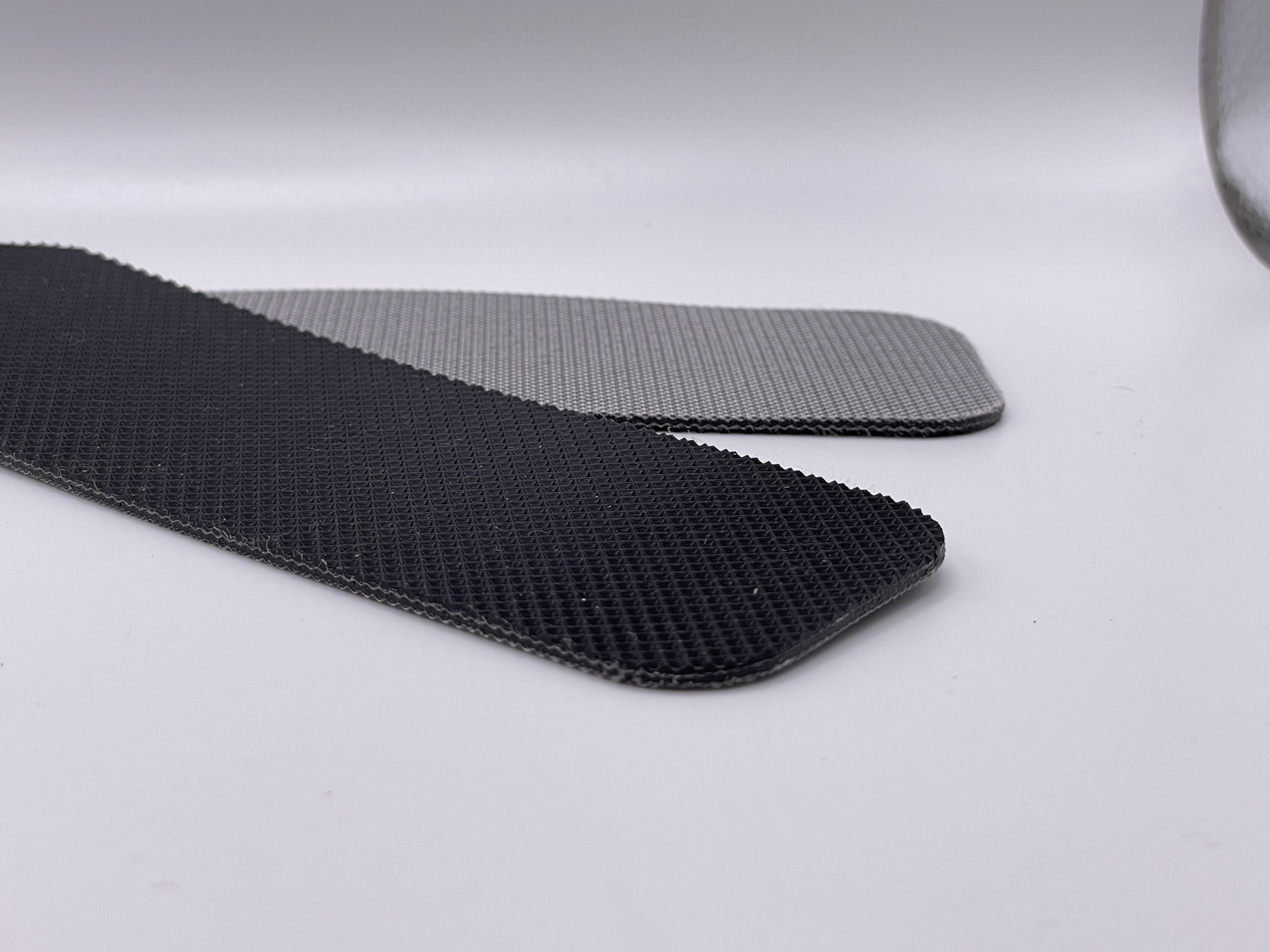

03 051 Mf Bp 220 Mono Flex BP 220

Good resistance to oils, grease, acids and solvents, except in high concentrations. Excellent belt for feed belts in mail sortation applications.

03-051 Download

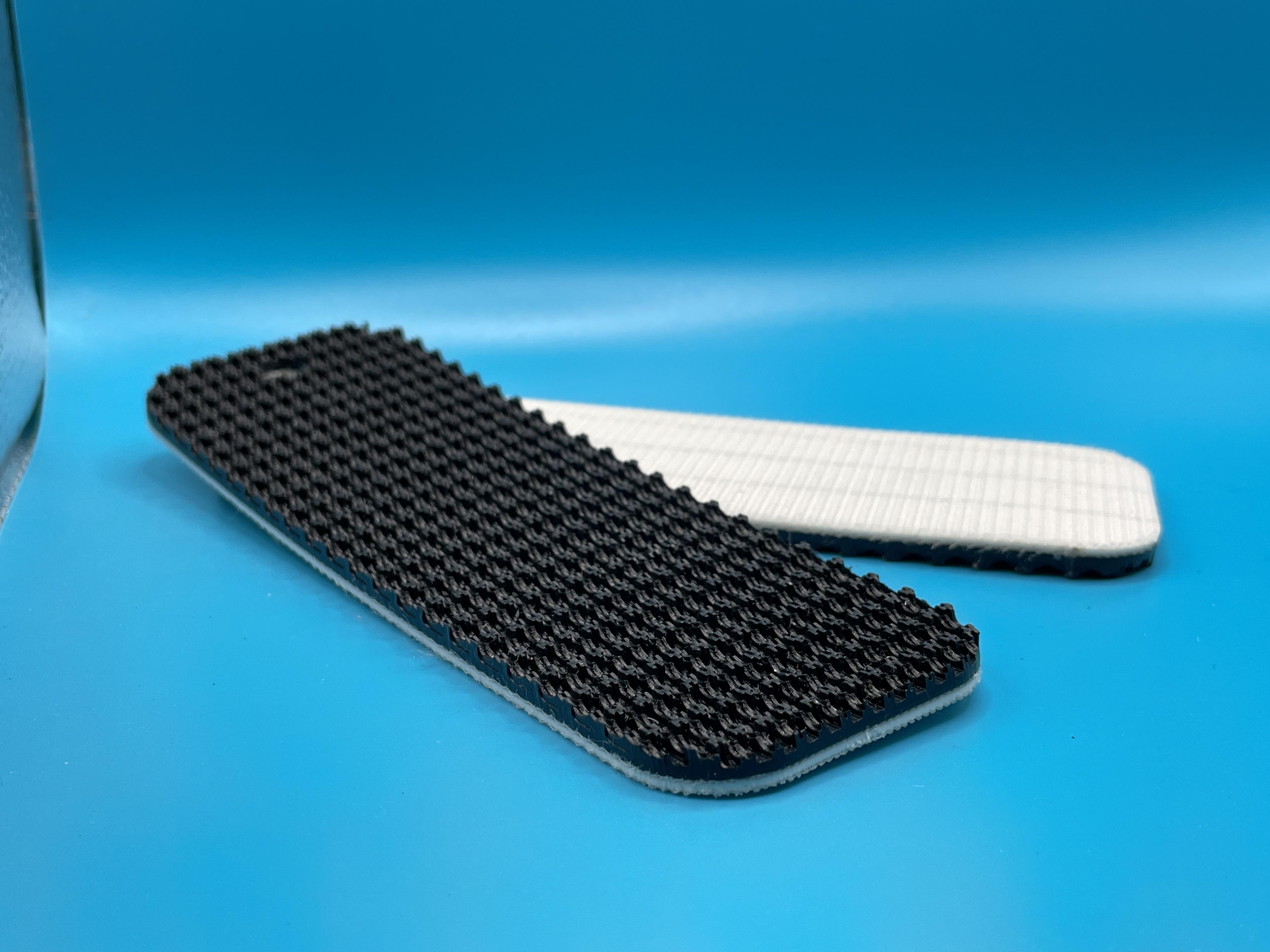

03 387 Mf Bp 230 Mono Flex BP 230 A/S

Good mineral and petroleum oil resistance. Good resistance to acids and solvents but avoid high concentrations. Belt lays flat -- no edge curl. Low stretch. Easy to track. Spun polyester offers low noise and improved abrasion resistance at high speeds. Soft (50 durometer) PVC rough top gives good grip on inclines/declines. Uses: inclines/declines for metering, luggage, boxes, mail, parcels.

03-387 Download

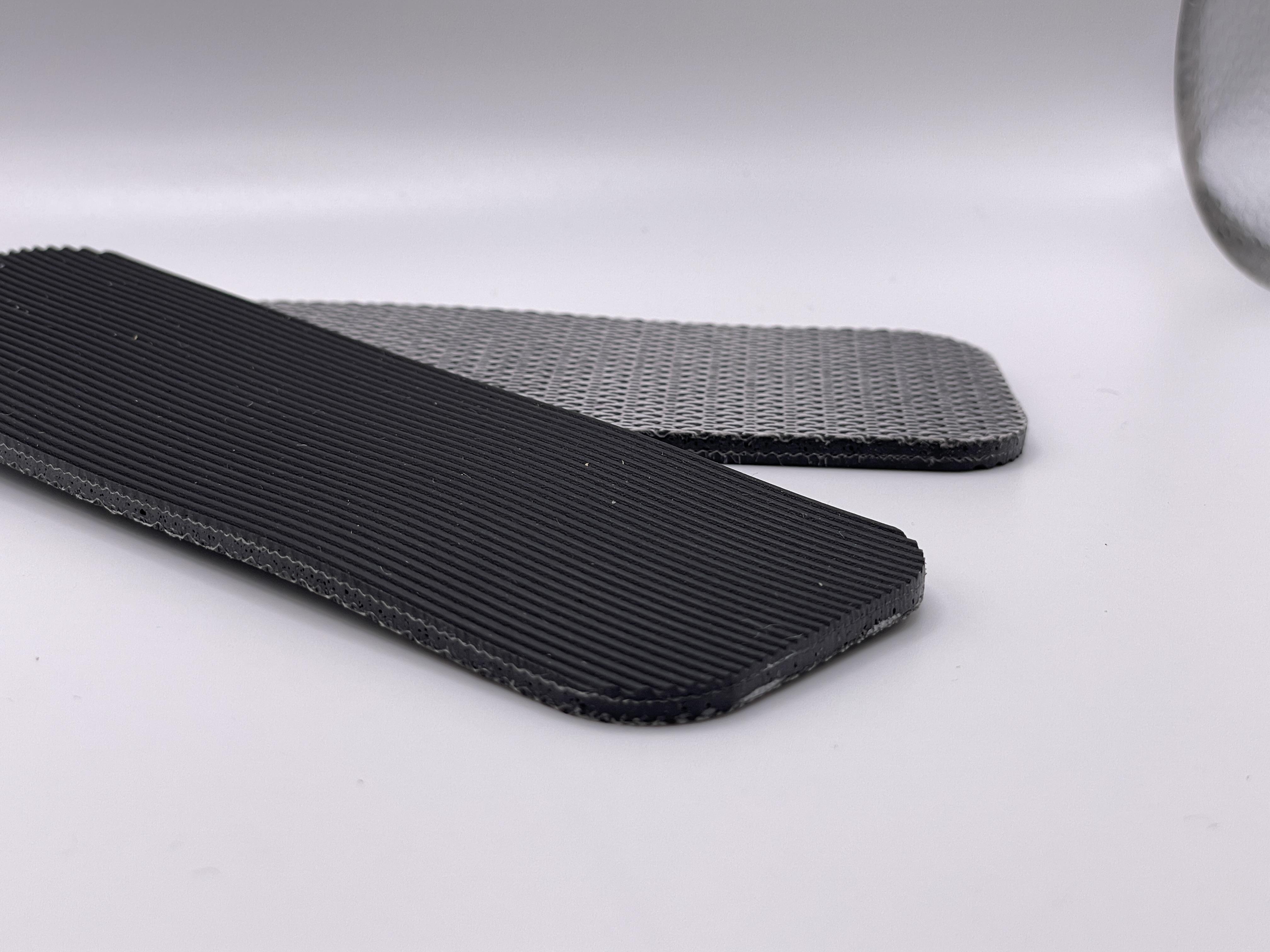

03 069 Mf Bp 290 H Qw Fr Mono Flex BP 290 H QW FR

Excellent cross-width rigidity for the most demanding logistics applications including: telescoping, incline, and decline, and high speed applications. Ultra quiet design with thick PVC continuous top cover combined with quiet weave bottom fabric. ASTMD 378-10 Flame Retardant and REACH Compliant.

03-069 Download

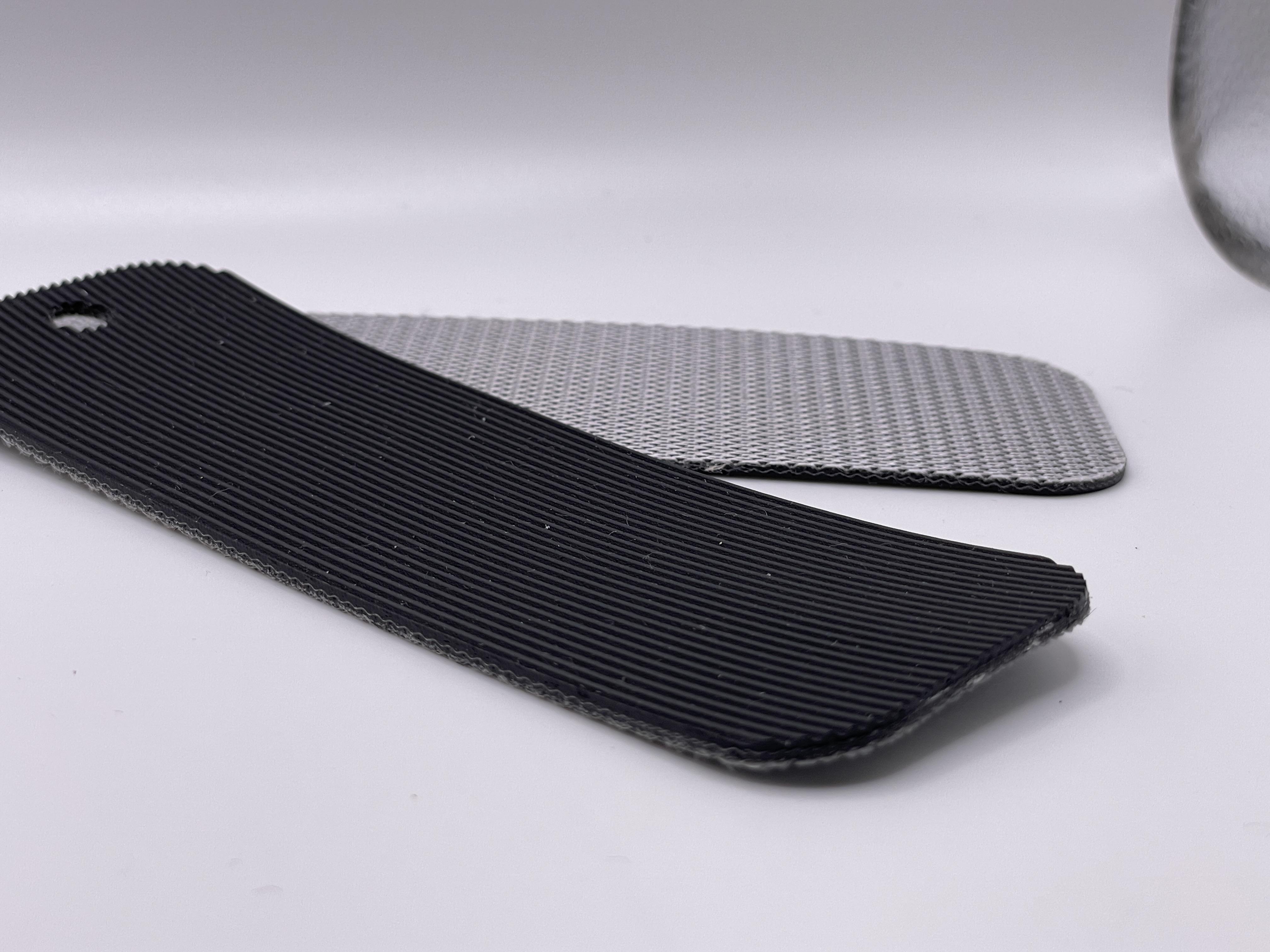

03 004 Mf Bp 290 Qw Mono Flex BP 290 Q/W

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone Resistant. Belt lays flat and tracks well. Ideal for incline and decline service for plastic totes, packing and sorting. The whisper weave offers low noise and improved abrasion resistance at high speeds.

03-004 Download

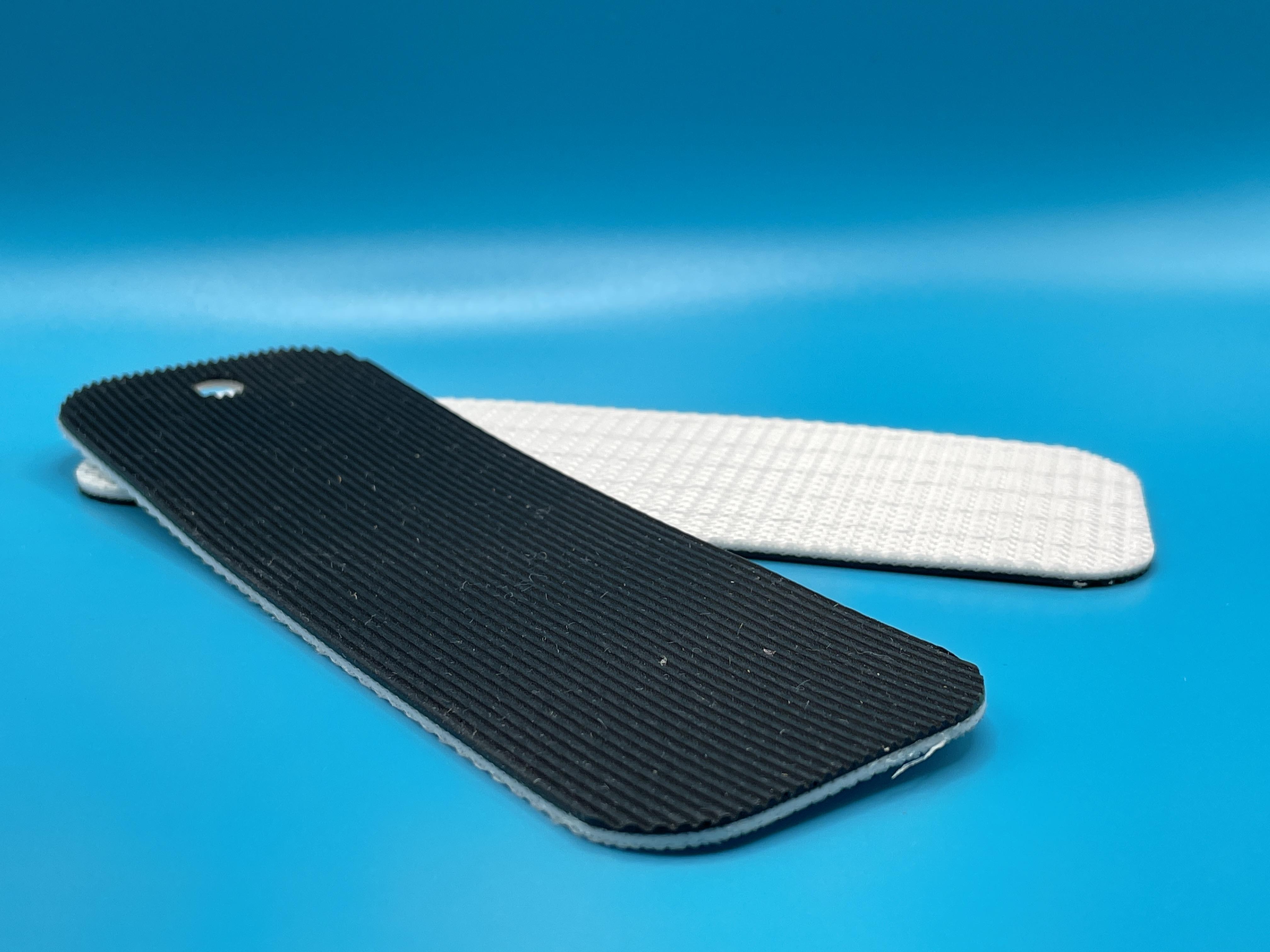

03 065 Mf Bp 290 Qw Fr Mono Flex BP 290 QW FR

Excellent cross-width rigidity for the most demaning logistics applications including: telescoping, incline and decline, and high speed applications. Ultra quiet design with thick PVC continuous top cover combined with quiet weave bottom fabric. ASTMD 378-10 Flame Retardant and REACH Compliant.

03-065 Download

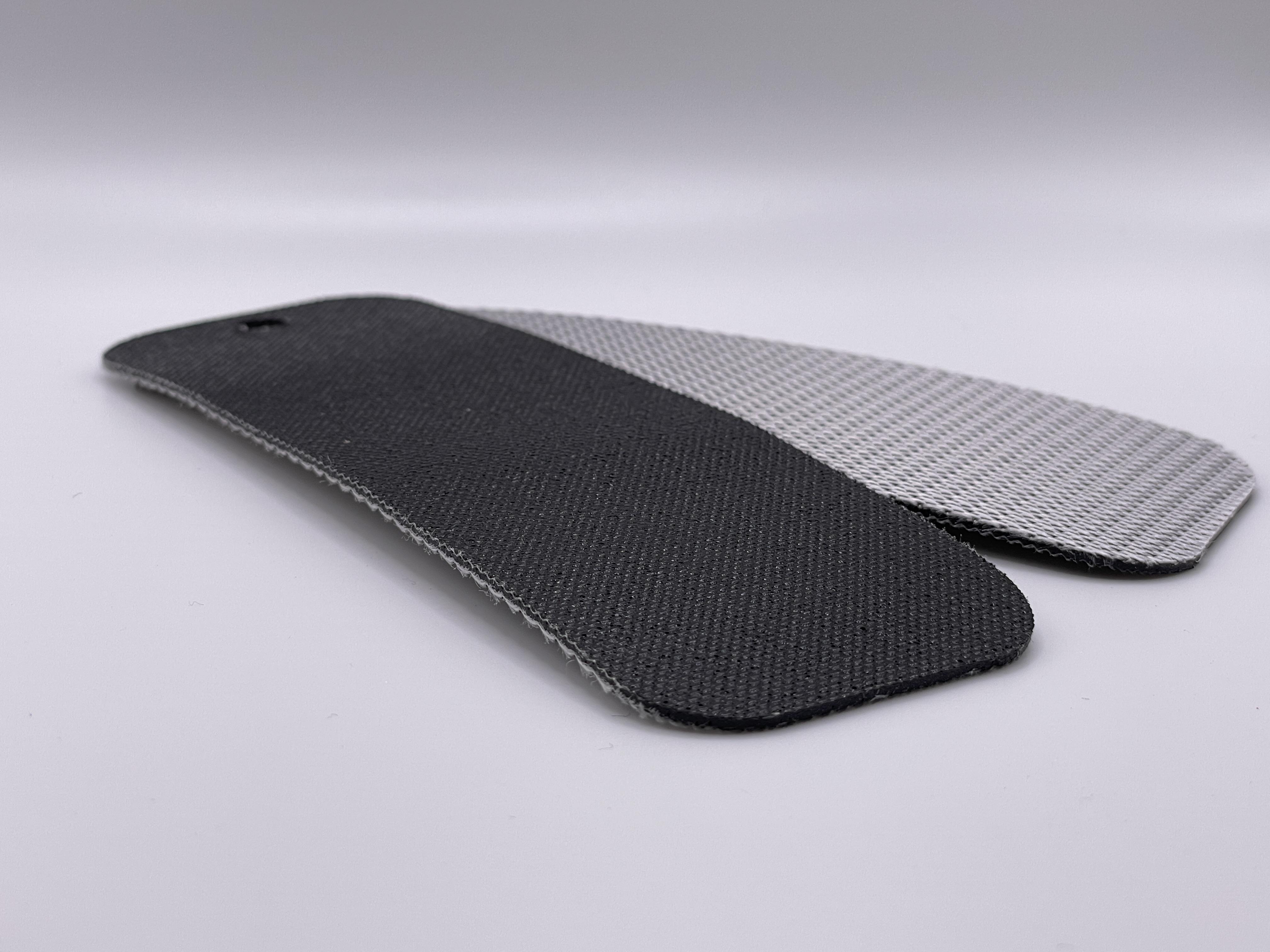

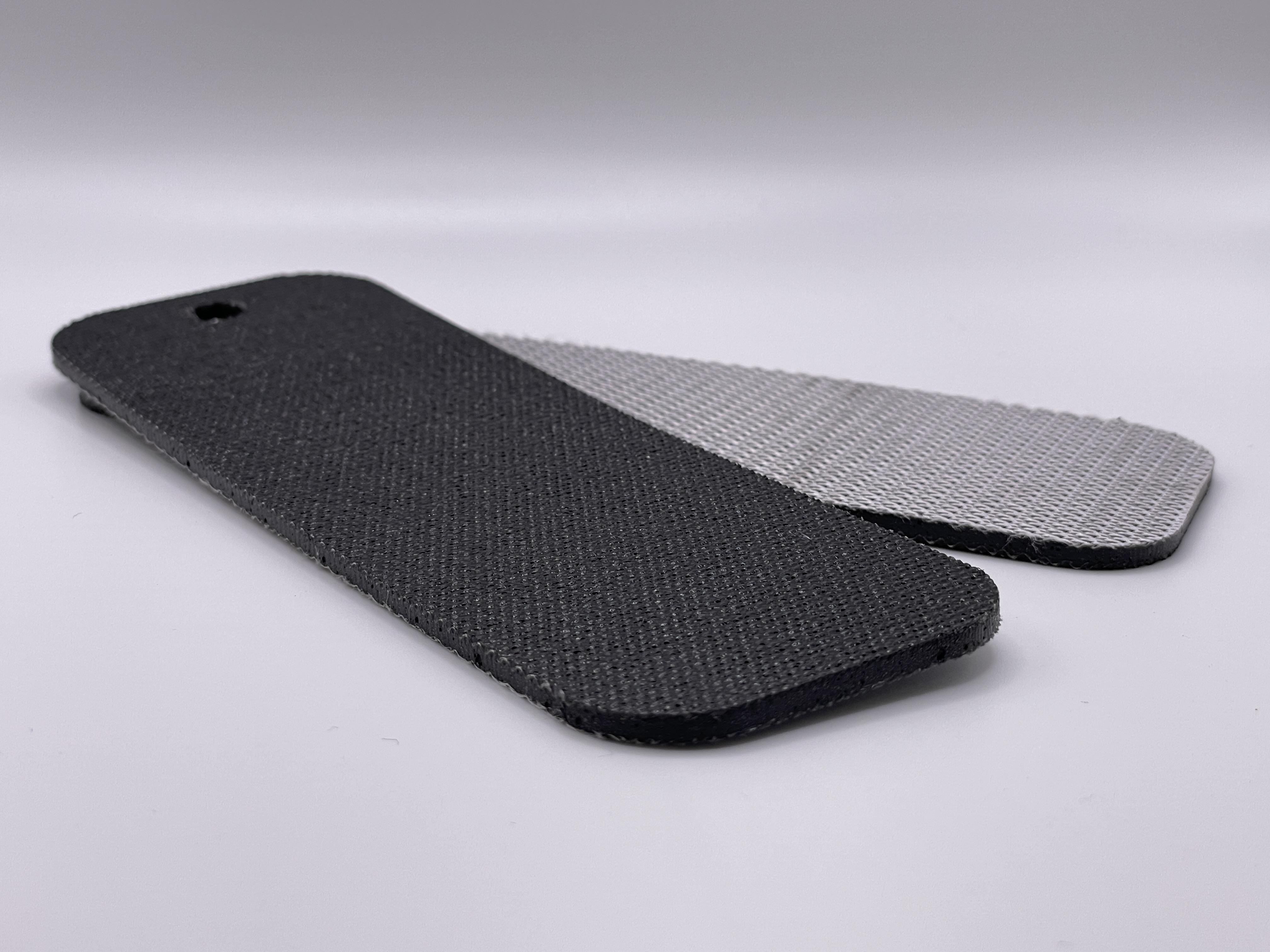

03 071 Mf Bu 200 Fr Mono Flex BU 200 FR 03-071 Download
03 071 Bu 200 Fr Mono Flex BU 200 I

Good mineral and petroleum oil resistance. Good resistance to acids and solvents but avoid high concentrations. Belt lays flat -- no edge curl. Low stretch. Easy to track. Spun polyester offers low noise and improved abrasion resistance at high speeds. Black urethane coating on carrying surface for abrasion and to use under scanners. Uses: sortation conveyors, scanners, diverters, plow applications and where low noise and high speeds are important. Handles high voltage.

03-124 Download

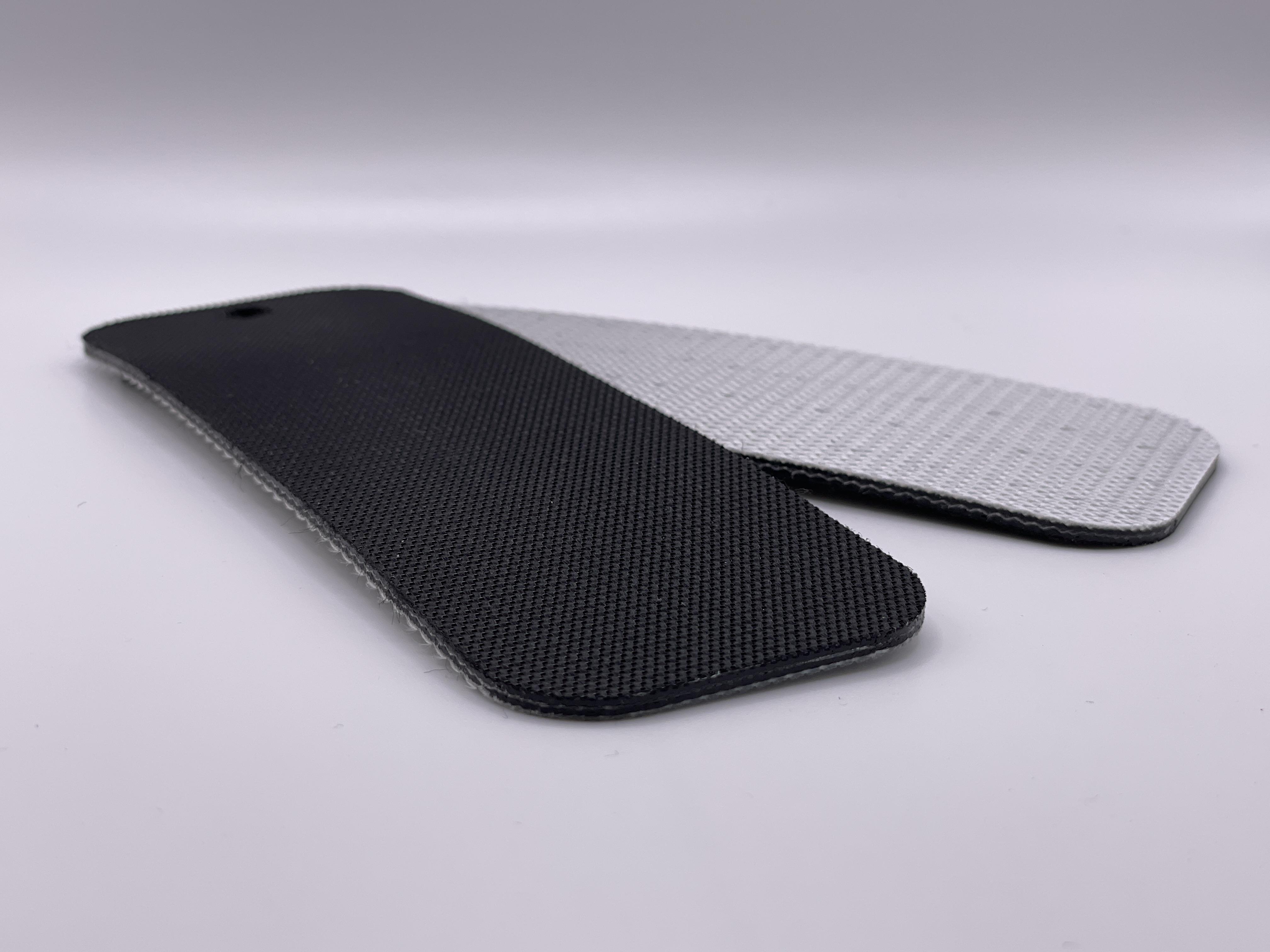

03 162 Mf Bu 300 Mono Flex BU 300

Limited oil, fats and solvents resistance. The top cover has good resistance to acids, salts and bases with the exception of very strong oxidants (such as concentrated sulphuric and nitric acid). It is a good choice for ploughing, off and side loading applications, used as a roll up belt or loop belt in the fiberglass insulation industry.

03-162 Download
03 155 Mf Cu 210 As Mono Flex CU 210 A/S

Excellent oil (mineral and petroleum) and grease resistance. Good resistance to acids and solvents, except in high concentrations. Excellent product release. Very good abrasion resistance. Belt lays very flat. Proven performance on stamping machines, magnetic conveyors, slugveyors.

03-155 Download

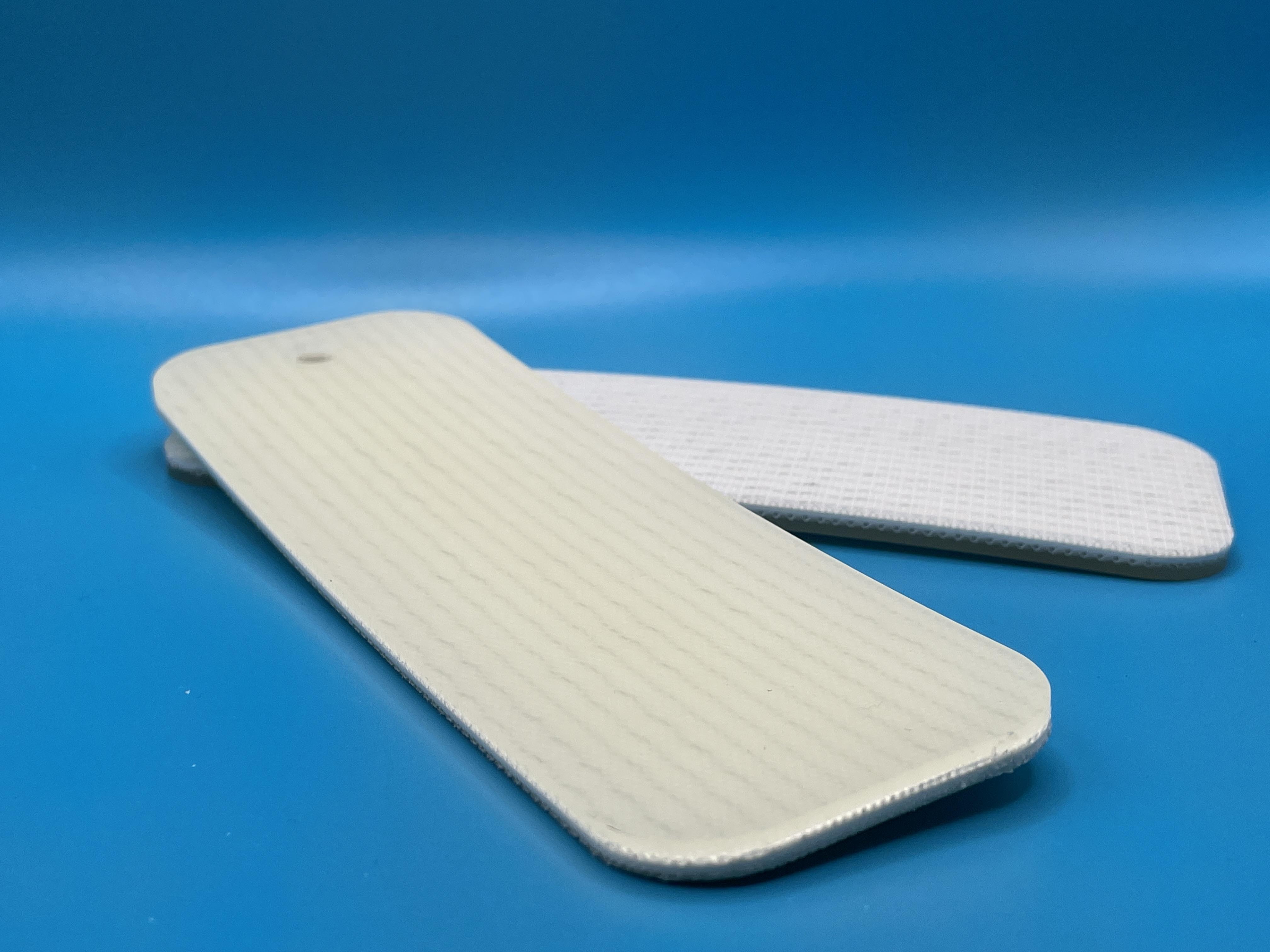

03 006 Mf Cu 210 H Mono Flex CU 210 H A/S

Excellent oil (mineral and petroleum) and grease resistance. Good resistance to acids and solvents. Excellent product release. Very good abrasion resistance. Belt lays flat. Proven performance on stamping machines, magnetic conveyors slugveyors, take away, punching and die cutting.

03-006 Download

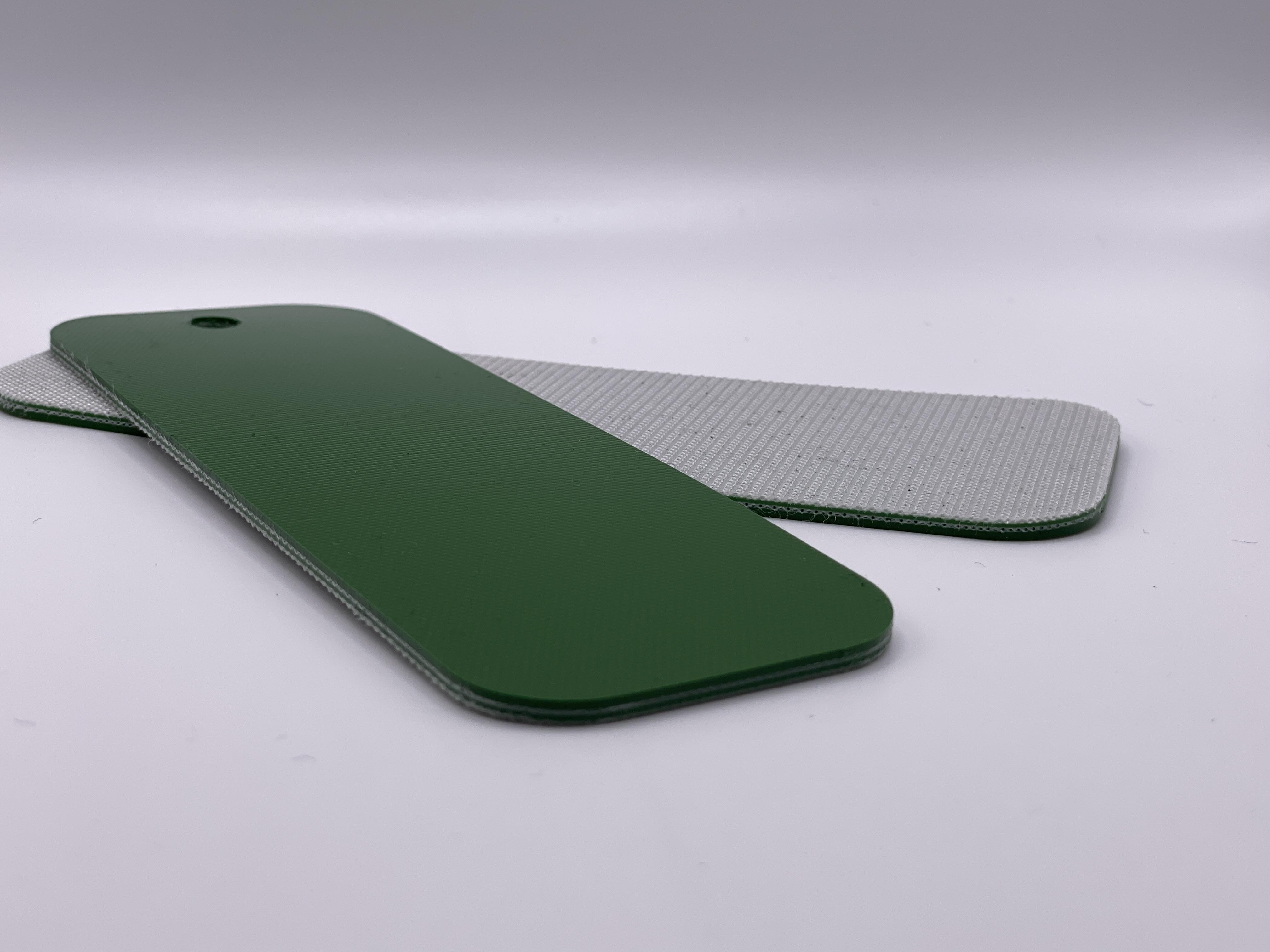

03 344 Mf Gp 210 Mono Flex GP 210

Good oil and grease resistance. Limited resistance to chemicals and solvents. FDA Approved: FDA #21 CFR 175.300. Belt lays very flat with no edge curl. Good choice as base belts for cleats and sidewalls. Used as corrugated delivery belts, sheet glass handling and as "back up" belts for glass polishers. Other uses include inspection tables for fruits, vegetables, nuts and as harvesting belts for the vegetable industry.

03-344 Download
03 346 Mf Gp 210 H Mono Flex GP 210 H

Good oil and grease resistance to chemicals and solvents. FDA Approved: FDA #21 CFR 175.300. Belt lays very flat with no edge curl. Good choice as base belts for cleats and sidewalls. Used as corrugated delivery belts, sheet glass handling and as "back up" belts for glass polishers. Other uses include inspection tables for fruits, vegetables, nuts and as harvesting belts for the vegetable industry.

03-346 Download

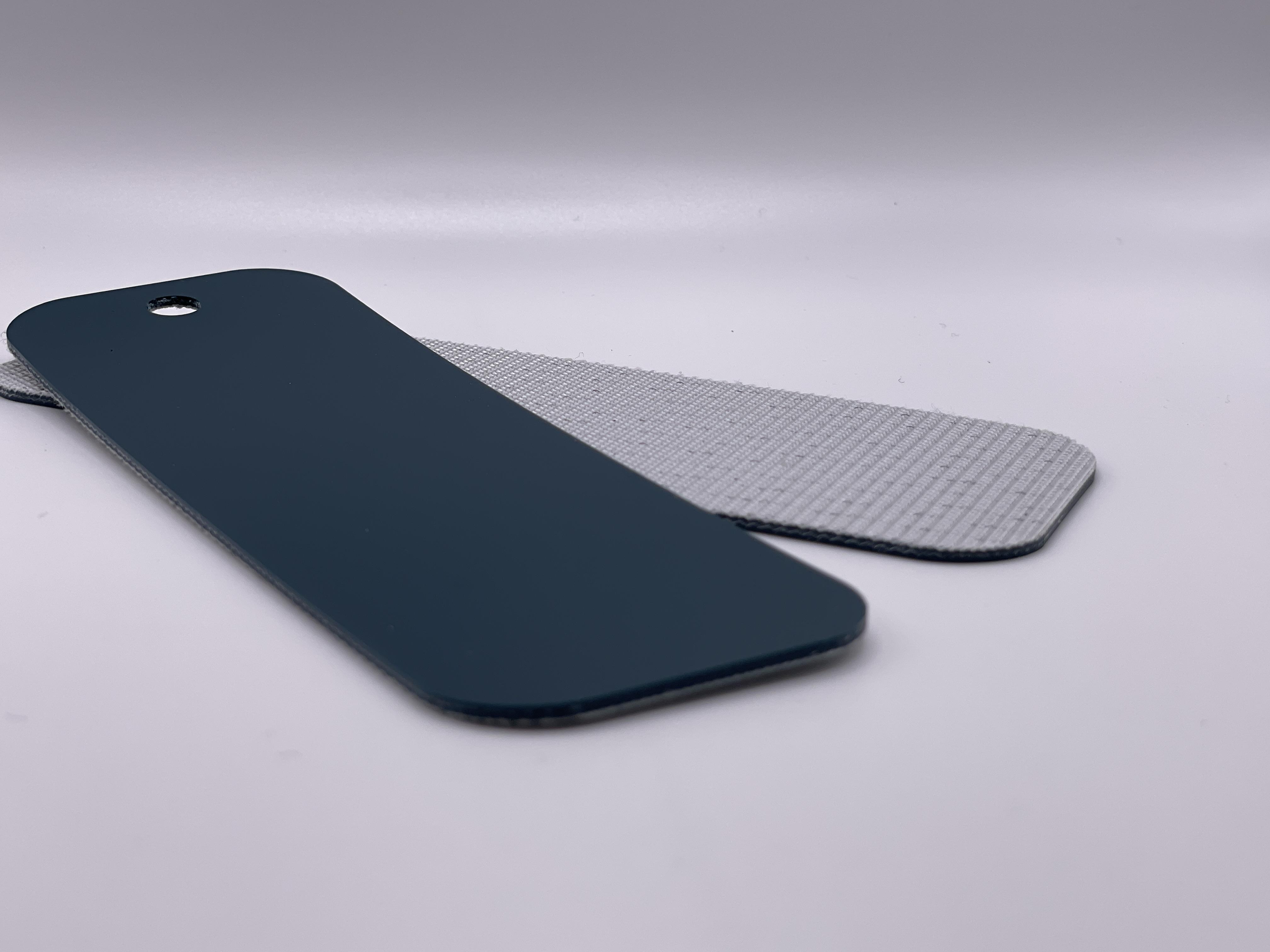

03 345 Mf Gp 210 M Mono Flex GP 210 M

Limited oil and grease resistance. Good resistance to acids and solvents but avoid high concentrations. Belt lays very flat with no edge curl. GP 210 M used on applications for fiberglass mats, foam buns, particle board mats, paper reams, package handling and plastic bags.

03-345 Download

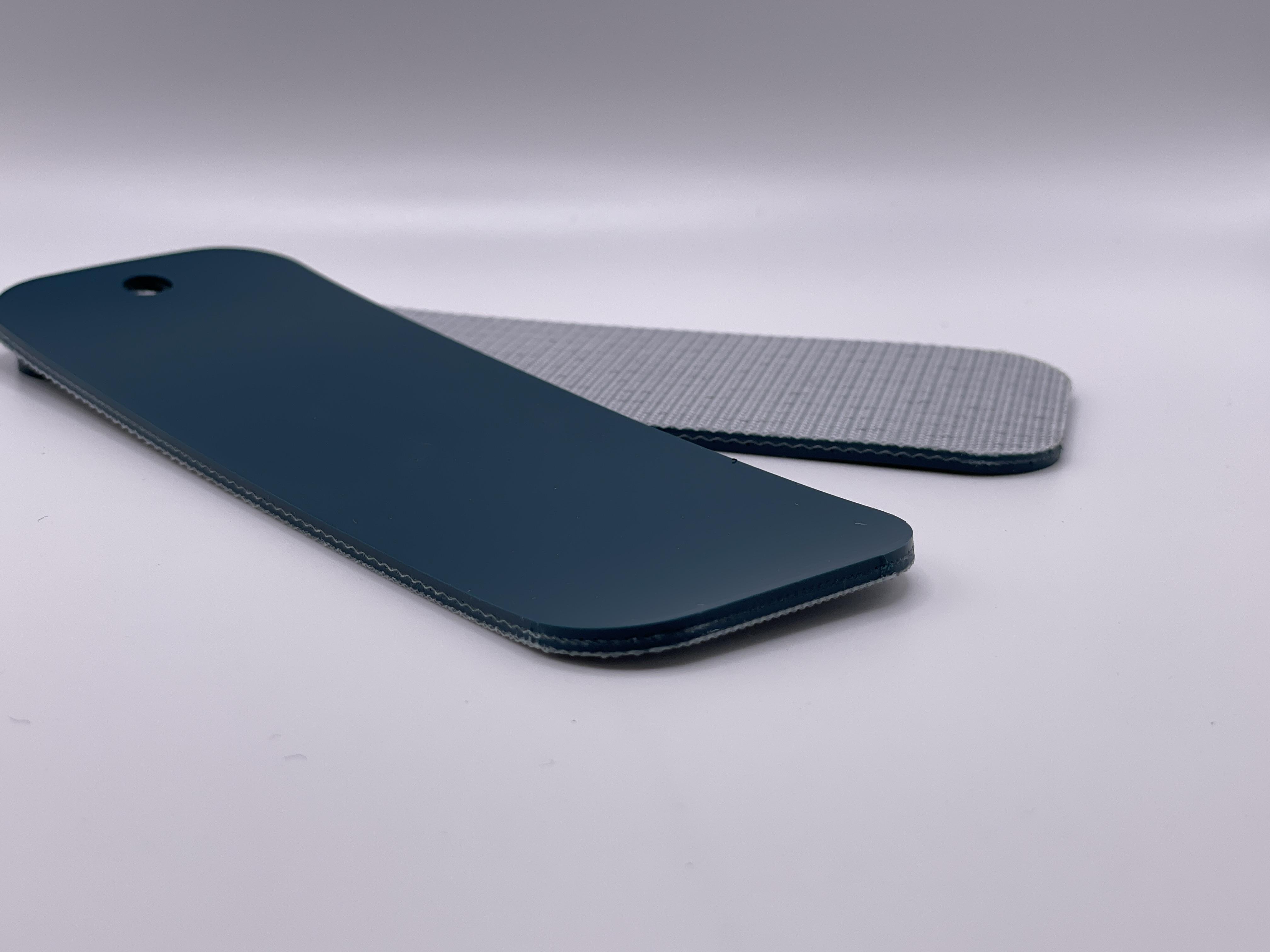

03 347 Mf Gp 210 Mh Mono Flex GP 210 MH

Good wear resistance on top surface due to the durometer of the PVC compound. Belt lays very flat. Designed for extension conveyors in the insulation industry. Ideal for general industry applications where oil resistance is not required but a heavier, longer wearing top surface is desirable. Limited oil and grease resistance. Good resistance to acids and solvents but avoid high concentrations.

03-347 Download

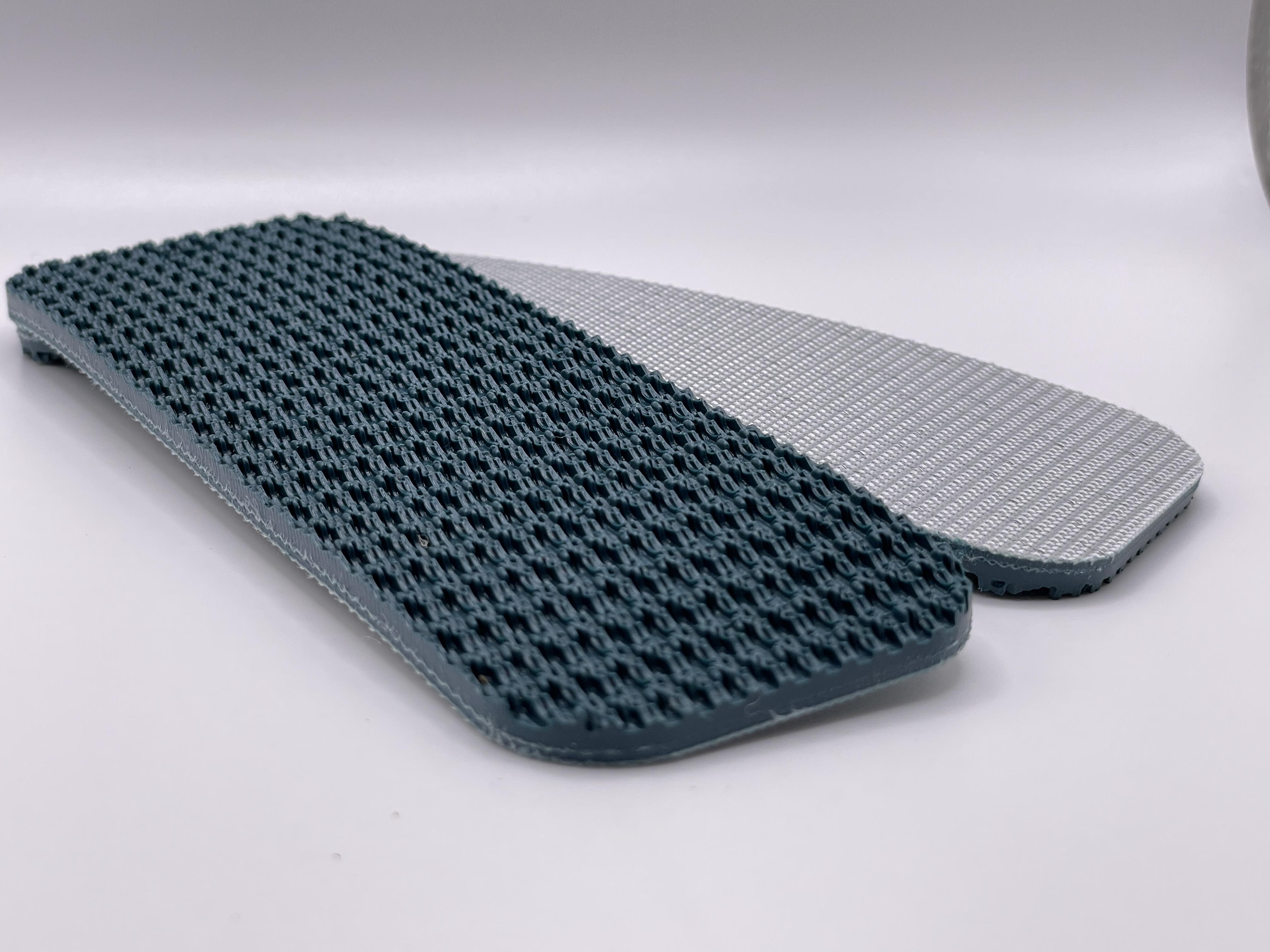

03 377 Mf Gp 230 Mono Flex GP 230

Limited oil and grease resistance. Good resistance to acids and solvents but avoid high concentrations. Belt lays very flat. Very good choice on case sealers. On incline application, the belt will handle plastic totes up to 25 degrees; boxes or crates up to 30 degrees; bags up to 35 degrees. For laces, a recessed cover is recommended.

03-377 Download

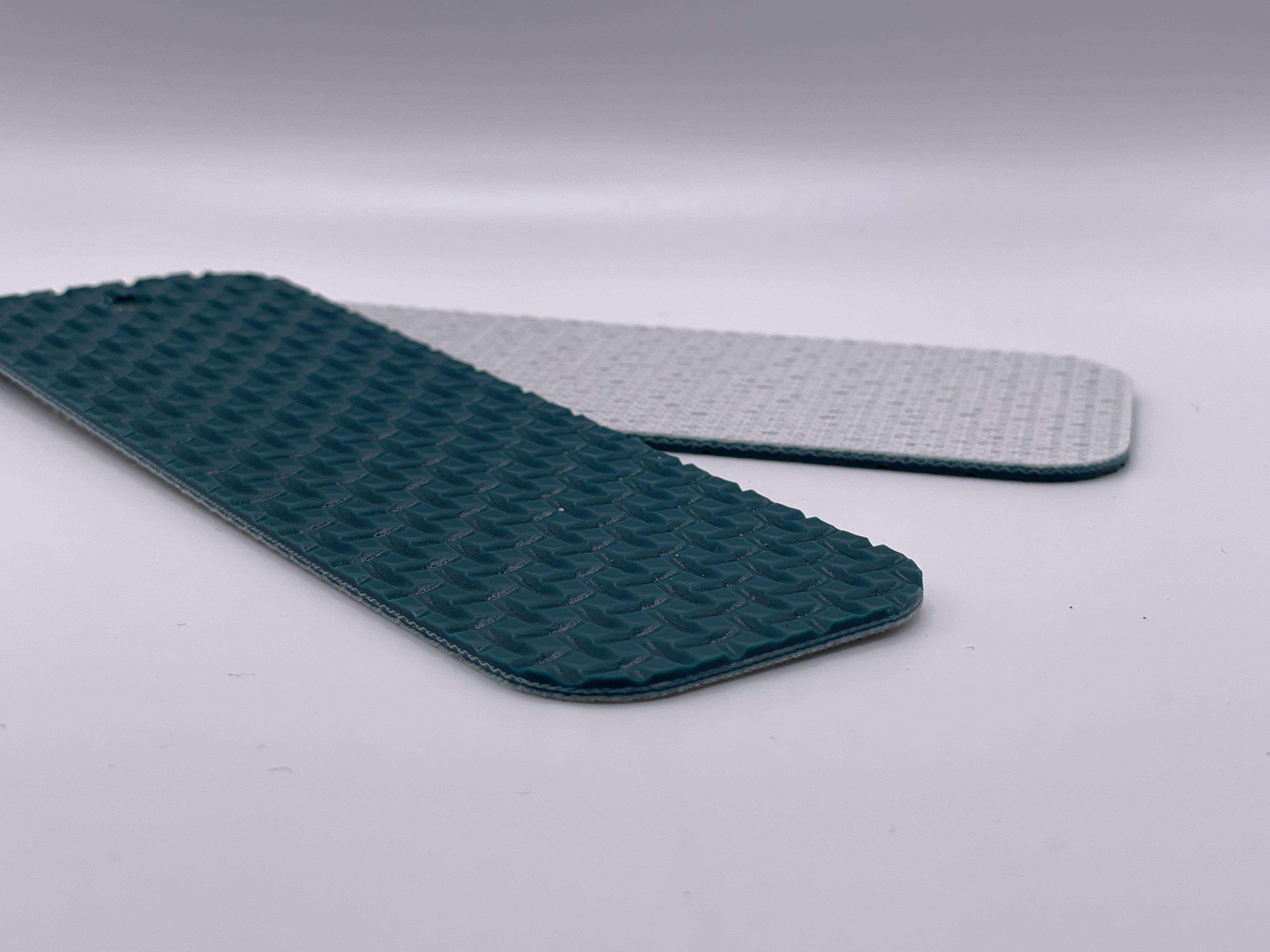

03 378 Mf Gp 270 Mono Flex GP 270

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Belts lay very flat. Profile impressions improve conveying. Anti-static property reduces attraction to dust and other contaminants. GP 270 with "lattice" impression is ideally suited for conveying plastic tote trays and waxed cartons….. And on heavy duty Hergeth "cross-lappers."

03-378 Download

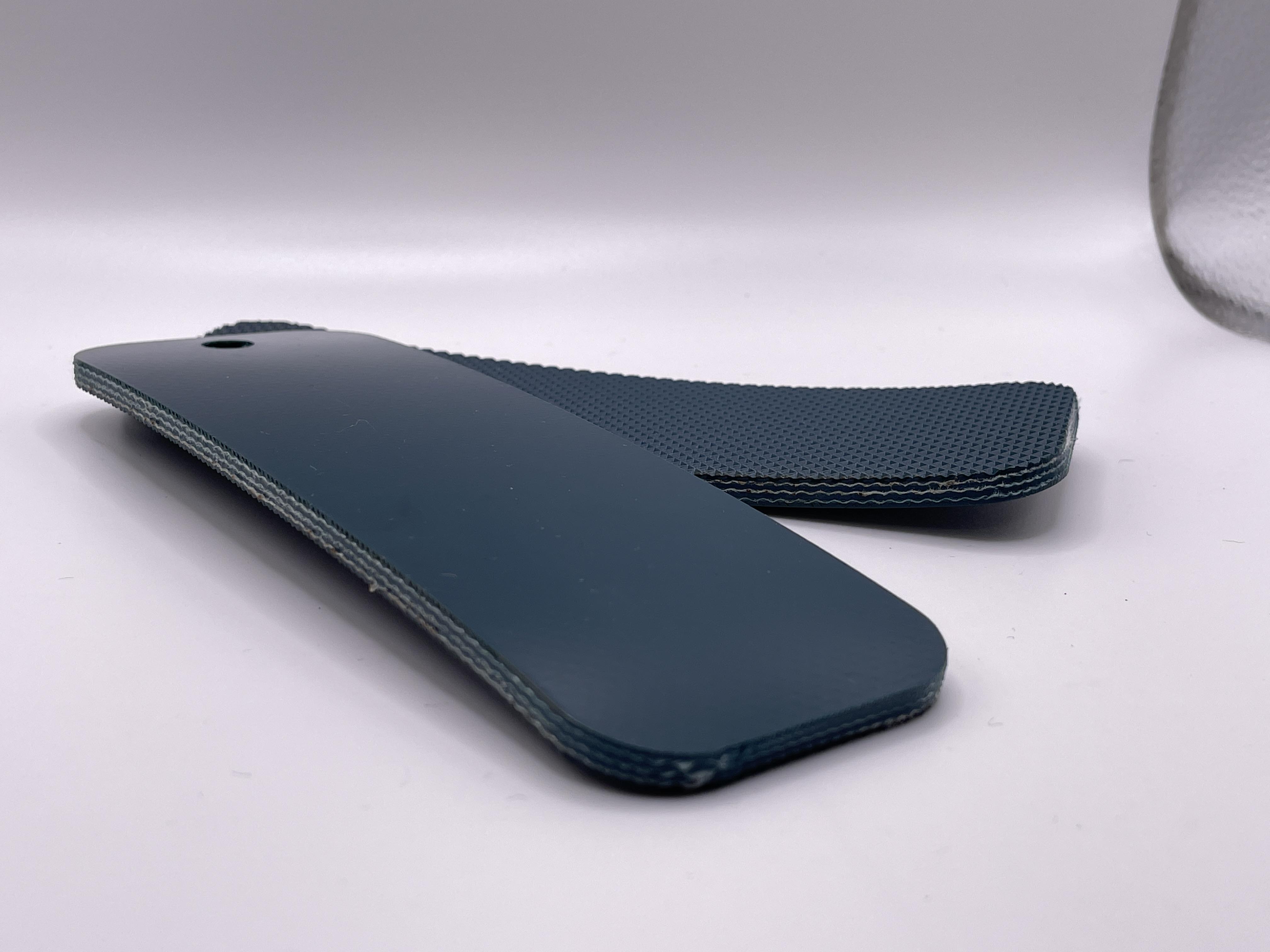

03 035 Mf Gp 312 Mono Flex GP 312

Limited oil and grease resistance. Good resistance to acids and solvents but avoid high concentrations. Belt tracks easily and is laterally stable. Used mainly on roller bed conveyors and where cover both sides is desirable to provide grease and oil resistance.

03-035 Download

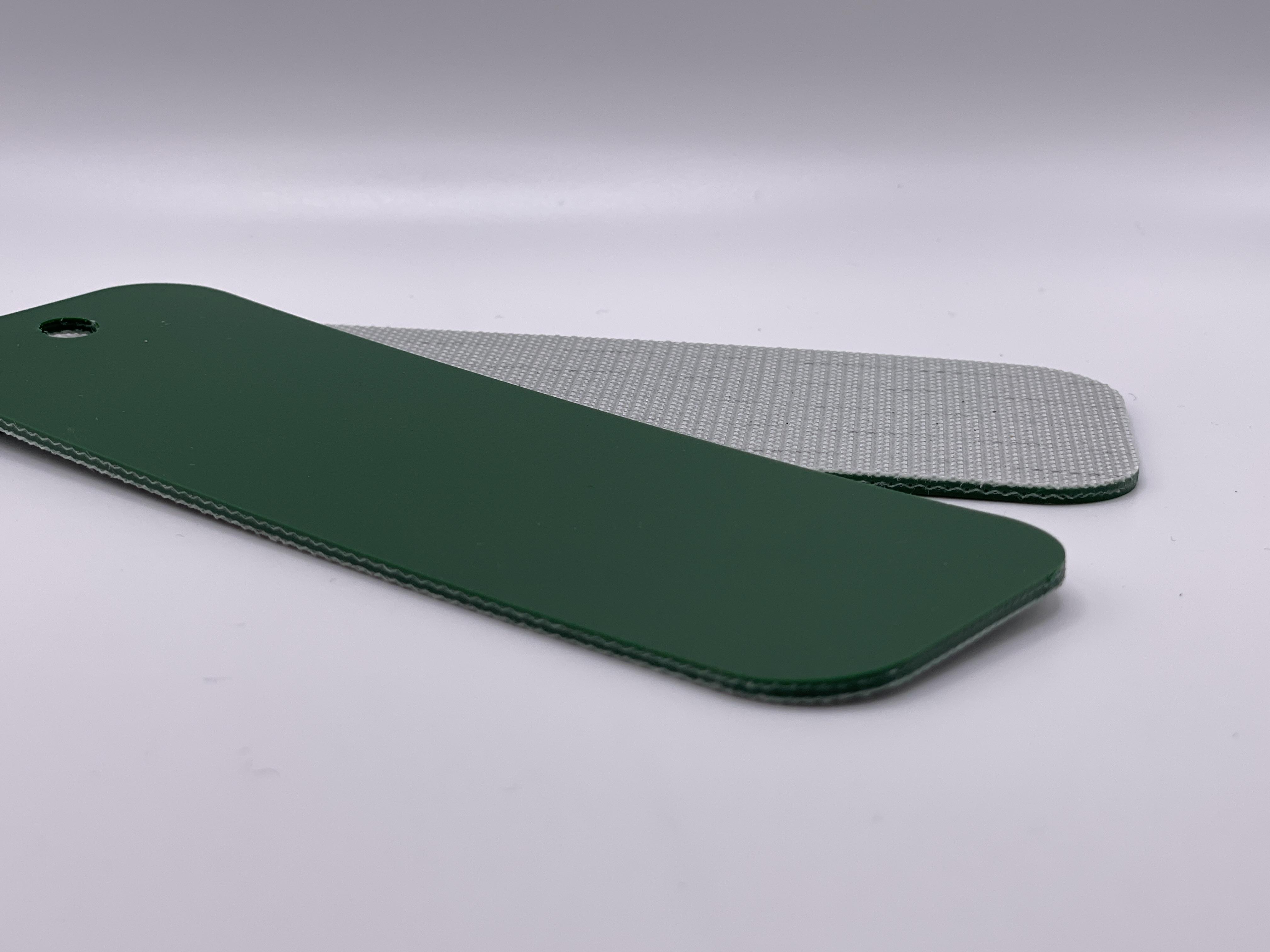

03 348 Mf Gr 210 S Mono Flex GR 210 S

Moderate to good oil and grease resistance. Limited resistance to chemicals and solvents. Check the specific chemical prior to recommending. Belt lays very flat with no edge curl. Good choice as base belts for cleats and sidewalls. Extra heavy monofilament strands provide additional crosswise rigidity. An excellent belt for horizontal to vertical inclines where hold-down rollers are used on the belt edges and you want to minimize belt lift in the middle.

03-348 Download
