Downloads:

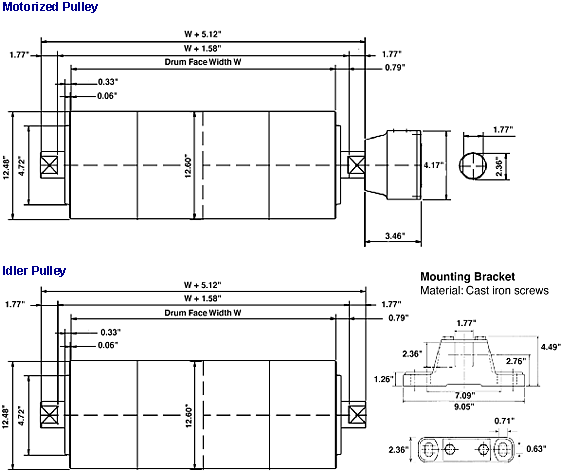

1248drummotor.dwg
electrical_connection.dwg

(To download CAD files: Right Click on file name, Select "Save Target As..", Select the directory where you want the file to be saved to, and then click "Save". Use your own CAD program to open files.)

Performance Specifications

	HP	Minimum Face Width	FPM (nominal)	Belt Pull (lbs)	Drum Torque (ft/lbs)
	2	19.69"	70 94 117 155 188	941 701 563 425 351	490 365 293 221 182
	3	19.69"	141 176 235 283 377	701 562 421 349 262	365 292 219 182 136
	5.5	19.69"	141 177 235 283 377 470 587	1285 1024 771 640 481 386 309	668 532 401 333 250 201 161
	7.5	19.69"	282 352 470 587	876 702 526 421	456 365 273 219

Standard Face Widths - Weight (lbs)

1. Maximum face width is 96"
2. E-brake option increases min. face width by 1.97"
3. Other speeds and face widths are available
4. Add 3.94" to min. face width for bolt-on end caps
5. Maximum lagging thickness is 1/4" (4% increase in finished speed)
6. For V-groove tube dia. of 12.60", length must be 2 times the min. face width.
7. For V-groove tube dia. of 13.60", length can be same as min. face length (8% increase in finished speed)
8. All motors can be single or dual voltage 230v or 460v 3 phase.
