Sparks: DURA-DRIVE PLUS - 6.46" Diameter Drum Motor

6.46" Diameter Drum Motor

Downloads:
646drummotor.dwg
electrical_connection.dwg

(To download CAD files: Right Click on file name, Select "Save Target As..", Select the directory where you want the file to be saved to, and then click "Save". Use your own CAD program to open files.)

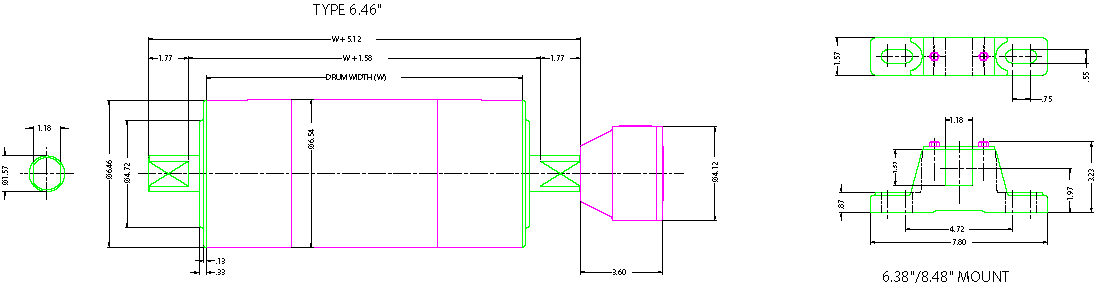

6.46in Diameter Drum Motor

Performance Specifications

HP	Minimum Face Width	FPM (nominal)	Belt Pull (lbs)	Drum Torque (ft/lbs)
0.5	17.72"	21	752	200
0.75	17.72"	31 38	797 650	212 173
0.75	15.75"	47 59 104	526 419 227	140 111 60
1	15.75"	235	140	37
1	15.75"	65 74 104 118 149 189	488 439 304 266 221 175	130 117 81 71 59 47
2	15.75"	235	280	75
1	17.72"	38	867	231
2	17.72"	104 118 149 189	611 539 430 351	162 143 114 93
3	17.72"	118 149 205 295 374 472	838 663 468 335 253 200	223 176 124 89 67 53

Standard Face Widths - Weight (lbs)

1. Maximum face width is 96"
2. Other speeds and face widths are available
3. Add 1.97" to min. face width for bolt-on end caps
4. Maximum lagging thickness is 1/4" (8% increase in finished speed)
5. For V-groove tube dia. of 6.50", length must be two times the min. face width
6. For V-groove tube dia. of 7.45", length can be same as min. face length (17% inrease in finished speed)
7. All motors can be single or dual voltage 230v or 460v 3 phase
