Sparks DURA-DRIVE PLUS - 4.39" Diameter Drum Motor

4.39" Diameter Drum Motor

Downloads:

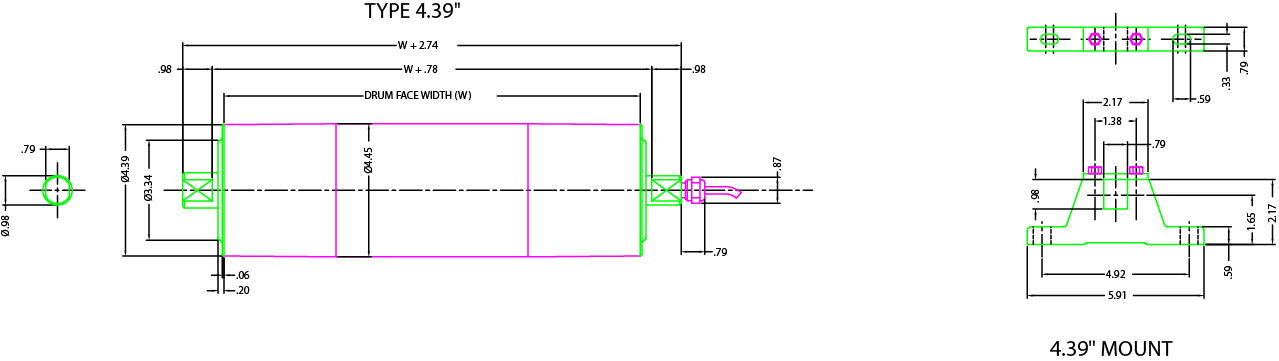

439drummotor.dwg
electrical_connection.dwg

(To download CAD files: Right Click on file name, Select "Save Target As..", Select the directory where you want the file to be saved to, and then click "Save". Use your own CAD program to open files.)

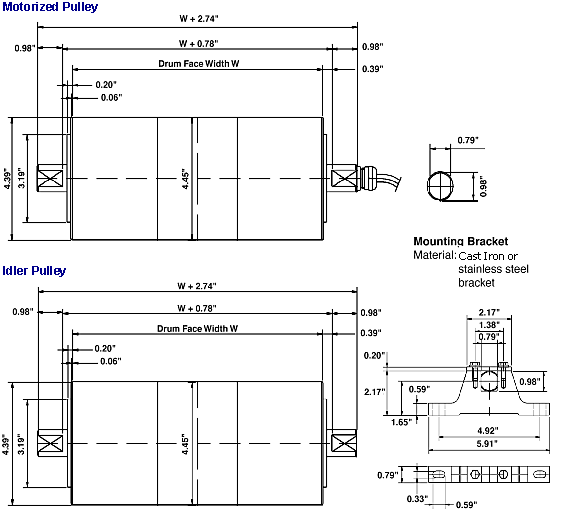

4.39in Diameter Drum Motor

Performance Specifications

HP	Minimum Face Width	FPM (nominal)	Belt Pull (lbs)	Drum Torque (ft/lbs)
0.2	9.84"	47 65 94	140 97 70	26 18 13
0.25	11.81"	29 41	289 186	53 34
0.4	11.81"	47 65 71 94 104	280 198 186 140 124	51 36 34 26 23
0.5	11.81"	104 118 142 189 280 325	151 140 116 87 60 49	28 26 21 16 11 9

Standard Face Widths - Weight (lbs)

1. Maximum face width is 59.5"
2. Other speeds and face widths are available
3. Add 1.97" to min. face width for bolt-on end caps
4. Maximum lagging thickness is 1/8" (6% increase in finished speed)
5. V-groove option must be two times the min. face width
6. Same dia. (4.45") grooved tube is only option
7. All units are available in 3 phrase, single or dual voltage 230v or 460v
