Sparks: DURA-DRIVE PLUS - 5.38" Diameter Drum Motor

5.38" Diameter Drum Motor

Downloads:
538drummotor.dwg
electrical_connection.dwg

(To download CAD files: Right Click on file name, Select "Save Target As..", Select the directory where you want the file to be saved to, and then click "Save". Use your own CAD program to open files.)

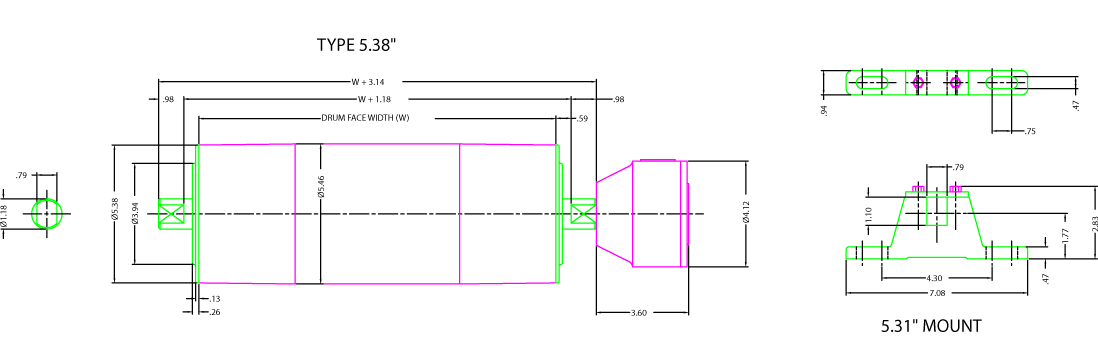

5.31in Diameter Drum Motor

Performance Specifications

HP	Minimum Face Width	FPM (nominal)	Belt Pull (lbs)	Drum Torque (ft/lbs)
0.25	13.78"	19	412	91
0.34	13.78"	26 31 54	422 341 196	93 75 43
0.5	11.81"	38 47 65 85 104 133	434 351 243 185 153 117	98 78 54 41 34 26
0.75	11.81"	85 104 133 175 210 280 295 430	279 225 176 135 113 86 77 54	62 50 39 30 25 19 17 12
1.0	13.78"	59 85 104 133	545 381 308 240	120 84 68 53
1.5	13.78"	104 133 189 260	450 354 250 182	99 78 55 40

Standard Face Widths - Weight (lbs)

1. Maximum face width is 81"
2. Other speeds and face widths are available
3. Add 1.97" to min. face width for bolt-on end caps
4. Maximum lagging thickness is 1/4" (9% increase in finished speed)
5. For V-groove tube dia. of 5.45", length must be two times the min. face width
6. For V-groove tube dia. of 6.45", length can be same as min. face length (22% increase in finished speed)
7. All motors can be single or dual 230v or 460v 3 phase
