Sparks: DURA-DRIVE PLUS - 8.48" Diameter Drum Motor

8.48" Diameter Drum Motor

Downloads:

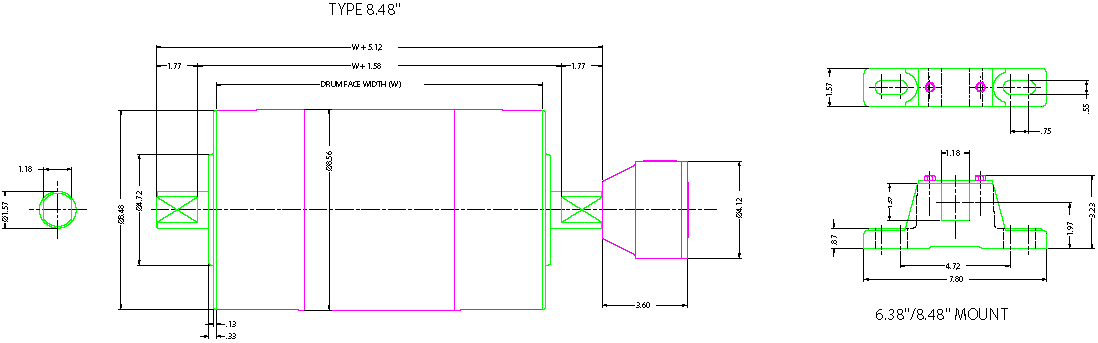

848drummotor.dwg
electrical_connection.dwg

(To download CAD files: Right Click on file name, Select "Save Target As..", Select the directory where you want the file to be saved to, and then click "Save". Use your own CAD program to open files.)

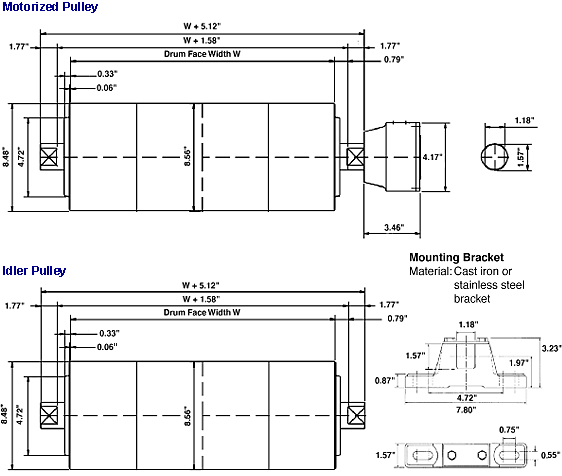

8.48in Diameter Drum Motor

Performance Specifications

HP	Minimum Face Width	FPM (nominal)	Belt Pull (lbs)	Drum Torque (ft/lbs)
1.5	19.69"	47 59 76	1052 838 650	372 296 230
2	19.69"	63 80	997 824	352 291
3	19.69"	92	1075	380
3	19.69"	118 149 189	838 663 523	296 234 185
4	19.69"	149 236 295 472	840 559 447 279	296 197 158 99
5.5	19.69"	295 378 472	614 479 384	217 169 136

Standard Face Widths - Weight (lbs)

1. Maximum face width is 108"
2. Other speeds and face widths are available
3. Add 1.97" to min. face width for bolt-on end caps
4. Maximum lagging thickness is 3/8" (9% increase in finished speed)
5. For V-groove tube dia. of 8.56", length must be two times the min. face width
6. For V-groove tube dia. of 9.45", length can be same as min. face length (12% increase in finished speed)
7. All motors can be single or dual voltage 230v or 460v 3 phase
